Description

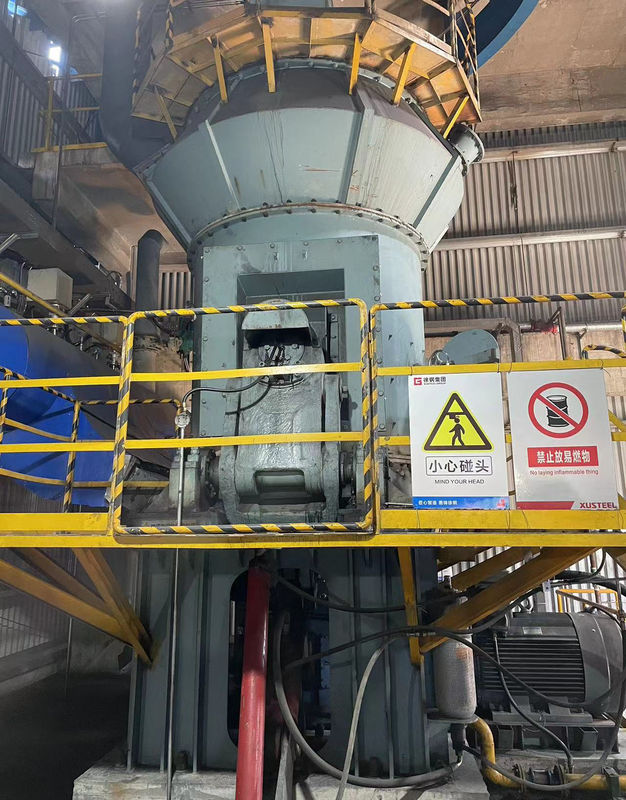

Bentonite Vertical Roller Mill is an advanced grinding equipment designed specifically for efficient processing of bentonite minerals. It integrates crushing, grinding, drying, classification, and transportation, and can process block shaped bentonite into fine powder that meets the requirements in one go (usually adjustable from 50 mesh to 1000 mesh). Its core advantages lie in low energy consumption, high efficiency, uniform product particle size, and easy adjustment, making it the preferred equipment for modern bentonite processing plants.
2. Working principle:
The electric motor drives the grinding disc to rotate through a reducer, and the material falls into the center of the grinding disc from the feeding port. At the same time, hot air enters the grinding chamber from the air inlet. Under the action of centrifugal force, the material moves towards the edge of the grinding disc and is crushed by the grinding roller when passing through the circular groove on the grinding disc. The crushed material is carried up by the high-speed airflow at the edge of the grinding disc, and large particles directly fall onto the grinding disc for re grinding. When the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls onto the grinding disc for re grinding, and qualified fine powder is discharged with the airflow, Collect in the powder collection device, which is the product. Materials containing moisture are dried during contact with hot gases to achieve the required product moisture.
3.Technical Parameters Table
| Specifications |
HVM800 |
HVM1250 |
HVM1300 |
HVM1500 |
HVM1700 |
HVM1750 |
HVM1900 |
HVM2400 |
HVM2400 |
HVM2500 |
| Grinding table median diameter(mm) |
800 |
1250 |
1300 |
1500 |
1700 |
1750 |
1900 |
2400 |
2400 |
2500 |
| Capacity(t/h) |
1-3 |
2-7 |
3-12 |
4-16 |
6-24 |
7-27 |
7-28 |
9-35 |
10-39 |
11-45 |
| Materials Grain Size(mm) |
0-15 |
0-20 |
0-25 |
0-35 |
0-35 |
0-35 |
0-40 |
0-40 |
0-40 |
0-50 |
| Materials Moisture(%) |
＜5 |
| Product Fineness(10-40um) |
97% |
| Product Moisture(%) |
≤1 |
| Main Motor Power(kw) |
55 |
132 |
180 |
250 |
355 |
400 |
450 |
560 |
630 |
710 |
Re:The data based on Mohs'hardness 3-4 material
The product fineness can reach 10 um(1250 meshes)
Core Features
Efficient grinding: Suitable for soft minerals with Mohs hardness ≤ 3 (bentonite has low hardness and is easy to process), with adjustable fineness ranging from 100 to 2500 meshes.
Low energy consumption: The vertical design reduces energy consumption, saving 30%-50% more energy than traditional ball mills.
Environmental friendliness: Adopts closed-operation mode and is equipped with a dust removal system to avoid dust pollution.
Automated control: The PLC system can adjust rotation speed, feeding quantity and classification parameters in real time.
Typical applications
Drilling mud: Production of API standard sodium/calcium based bentonite powder.
Casting sand binder: fineness of 200-400 mesh, improves the smoothness of castings.
Cat litter/adsorbent: Rapid prototyping of coarse particles (20-40 mesh).
Activated clay: Ultra fine grinding (800-2500 mesh) used as a decolorizing agent.
Bentonite Pulverizer Vertical Mill Selection suggestions
Raw material characteristics: Sodium based bentonite (soft) can be selected with low-pressure grinding rollers, while calcium based bentonite (hard) requires high-pressure machines.
Fineness requirement:
Coarse powder (20-200 mesh): choose vertical mill+dynamic classifier.
Ultra fine powder (800 mesh+): requires a secondary classification system (such as a vortex air classifier).
Automation: PLC control system is recommended to achieve remote adjustment of roller pressure and feeding amount.
